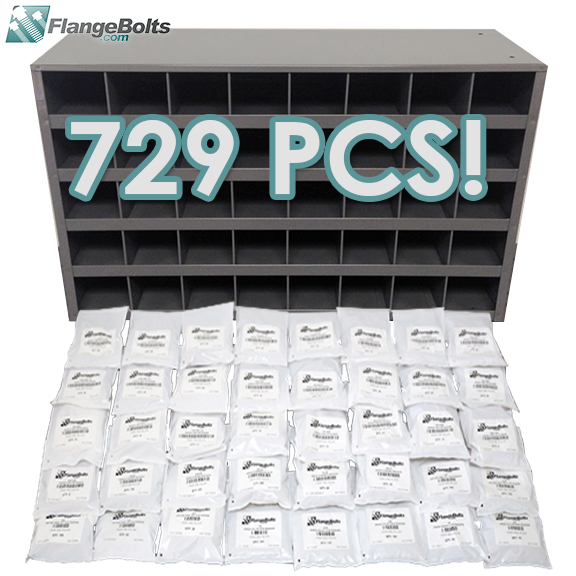

Coarse / Fine Thread Flange Bolt & Locknut Kit w/ 40 Hole Bin - 729 Pcs

729 Pieces!

BOLT INFORMATION:

Inch - Hex Flange Bolts Grade 8 IFI-111 Phosphate & Oil

NUT INFORMATION:

Inch - Hex Flange Toplock IFI-100/107 GRG Lock Nut Phosphate & Oil

FLANGE BOLTS:

 Coarse Thread Bolts
9/16" Hex; 0.81" Flange Diameter Max
(50) 3/8-16x1
(50) 3/8-16x1-1/4
(25) 3/8-16x1-1/2
(25) 3/8-16x2

3/4" Hex; 1.07" Flange Diameter Max
(15) 1/2-13x1-1/4
(15) 1/2-13x1-1/2
(15) 1/2-13x1-3/4
(15) 1/2-13x2
(10) 1/2-13x2-1/2
(10) 1/2-13x3

15/16" Hex; 1.33" Flange Diameter Max
(10) 5/8-11x1-1/2
(10) 5/8-11x1-3/4
(10) 5/8-11x2
(5) 5/8-11x2-1/4
(5) 5/8-11x2-1/2
(5) 5/8-11x3

1-1/8" Hex; 1.59" Flange Diameter Max
(5) 3/4-10x2
(5) 3/4-10x2-1/2
(5) 3/4-10x3

Fine Thread Bolts
3/4" Hex; 1.07" Flange Diameter Max
(15) 1/2-20x1-1/4
(15) 1/2-20x1-1/2
(15) 1/2-20x2
(10) 1/2-20x2-1/2
(10) 1/2-20x3

15/16" Hex; 1.33" Flange Diameter Max
(10) 5/8-18x1-1/2
(10) 5/8-18x1-3/4
(10) 5/8-18x2
(5) 5/8-18x2-1/2
(5) 5/8-18x3

1-1/8" Hex; 1.59" Flange Diameter Max
(5) 3/4-16x2
(5) 3/4-16x2-1/2
(4) 3/4-16x3

FLANGE LOCK NUTS:

Coarse Thread Nuts
(100) 3/8-16  (9/16" Hex; 0.81" Flange Diameter Max)
(60) 1/2-13  (3/4" Hex; 1.07 Flange Diameter Max)
(40) 5/8-11 (15/16" Hex; 1.33 Flange Diameter Max)
(10) 3/4-10 (1-1/8" Hex; 1.585 Flange Diameter Max)

Fine Thread Nuts
(45) 1/2-20  (3/4" Hex; 1.07 Flange Diameter Max)
(30) 5/8-18 (15/16" Hex; 1.33 Flange Diameter Max)
(10) 3/4-16 (1-1/8" Hex; 1.585 Flange Diameter Max)

CONTAINER INFORMATION:

1 - 40 Hole Steel Heavy Duty Bin

KIT NUMBER: 119
